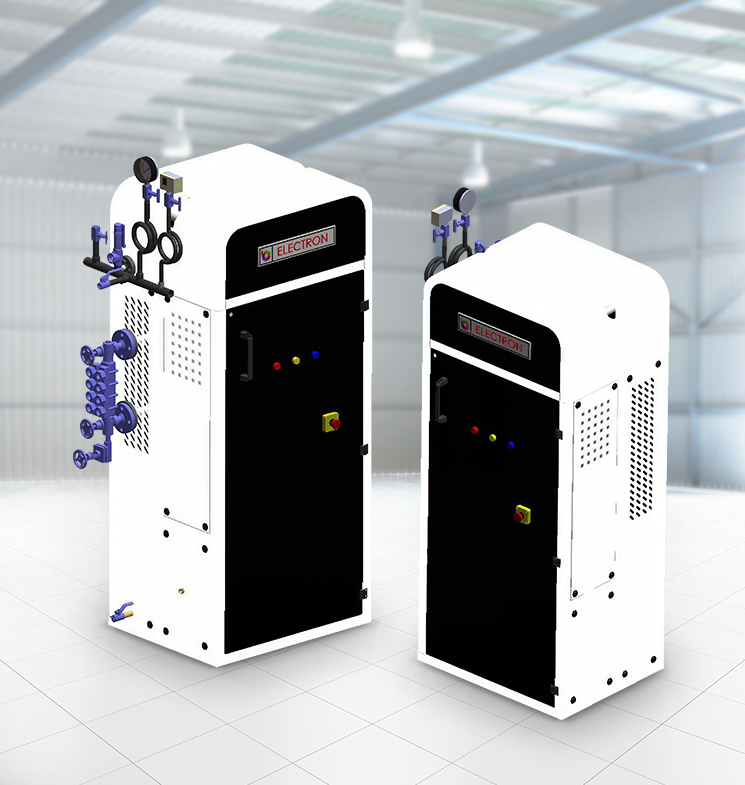

ELECTRON
Non-IBR Electric Boiler
Balkrishna Boilers introduces the ELECTRON, a highly efficient and compact steam generation solution designed for industries that require reliable steam without the complexities of IBR regulations.
The ELECTRON is a "Non-IBR" electric steam generator, meaning it falls under the threshold of the Indian Boiler Regulations while still delivering industrial-grade performance. It is the perfect choice for small-to-medium enterprises, laboratories, and specialized processing units that prioritize ease of operation and space-saving design.
Operating Range
- Capacity – 50 Kg/hr. to 400 Kg/hr***
- Fuel type – Electric Power
- Pressure- 7&10.54 kg/cm2
Efficiency Without the Compliance Burden
The ELECTRON offers all the benefits of modern electric steam generation with simplified operational requirements:
- No IBR Registration Required: As a Non-IBR unit, it offers significant savings in administrative costs and eliminates the need for a certified boiler attendant.
- Rapid Steam Generation: Its optimized internal volume allows for a faster start-up time, delivering saturated steam within minutes of activation.
- Stainless Steel Construction: Engineered with High-Quality Stainless Steel (SS), the ELECTRON ensures corrosion resistance, long-term durability, and a high level of hygiene for your steam output.
- Plug-and-Play Installation: The compact, integrated package design makes installation quick and straightforward, requiring only a power source and water connection.
Key Advantages of the ELECTRON
- Eco-Friendly & Silent: 100% electric power means zero emissions, no fuel storage, no chimney, and an exceptionally quiet operating environment.
- Precision Safety: Equipped with multiple safety interlocks, including high-pressure cut-offs and low-water level alarms, ensuring 24/7 safe operation.
- Minimal Maintenance: With high-grade heating elements and an SS body, the system is designed for minimal scale buildup and easy servicing.
- Compact Footprint: Ideal for facilities where floor space is limited or where the boiler needs to be placed near the point of use.
Targeted Applications
The ELECTRON is a versatile workhorse for industries including:
- Garment Finishing: For steam irons and fabric processing.
- Pharmaceuticals: For small-scale sterilization and lab research.
- Food Processing: For clean steam in commercial kitchens and dairies.
- Hotels & Hospitals: For laundry and humidification systems.
| Specification | Unit | ET-33 | ET-67 | ET-100 | ET-134 | ET-167 | ET-200 | ET-267 |
|---|---|---|---|---|---|---|---|---|
| General | ||||||||
| Steam Output From & at 100°C | Kg/hr | 50 | 100 | 150 | 200 | 250 | 300 | 400 |
| Working Pressure | Kg/CM² | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 |
| Steam Temperature | °C | 183 | 183 | 183 | 183 | 183 | 183 | 183 |
| Input Power Required | K.W. | 33 | 67 | 100 | 134 | 167 | 200 | 267 |
| Water holding | Liter | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Steam Outlet | MM | 15 | 20 | 20 | 25 | 25 | 25 | 25 |
| Input Power | Volt | 415 V- 3Phase 50 Hz | ||||||
| Type of Fuel | Fuel | Electric Power | ||||||
| Boiler Efficiency | ||||||||
| On Electric Heater | % | 98+/-2 | 98+/-2 % | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 | 98+/-2 |
| Power Consumption | ||||||||
| Electric Power | KW/Hr | 33 | 67 | 100 | 134 | 167 | 200 | 267 |
| Electrical Load | ||||||||
| Feed Water Pump | K.W. | 0.40 | 0.40 | 0.40 | 0.40 | 0.75 | 0.75 | 0.75 |
| Input Heater Power | K.W. | 33.00 | 67.00 | 100.00 | 134.00 | 167.00 | 200.00 | 267.00 |
| Total Electric Load | K.W. | 33.40 | 67.40 | 100.40 | 134.40 | 167.75 | 200.75 | 267.75 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||
- 1KW = 860 Kcal
Frequently Asked Questions (FAQ) about Non-IBR Electric Boiler
"Non-IBR" means this boiler is designed within the limits defined by the Indian Boiler Regulations that do not require formal registration or annual inspections by a boiler inspector. This reduces your administrative costs and operational complexity.
No. Unlike IBR boilers, the ELECTRON is designed for automated, user-friendly operation. It does not require a government-certified boiler attendant, making it easier for smaller staff teams to manage.
We use high-quality stainless steel to ensure the steam produced is clean and free from rust contamination. This is especially important for customers in the pharmaceutical, food processing, and garment industries who require high hygiene standards.
The ELECTRON is one of our most compact models. Its vertical, "package" design means it occupies a very small footprint, allowing it to fit into small utility rooms or directly on the factory floor near your machinery.
Absolutely. Since it is 100% electric, there are no exhaust fumes, no fire hazards from liquid fuels, and very little heat radiation. It is much safer and more comfortable for indoor installations compared to oil or gas-fired boilers.
