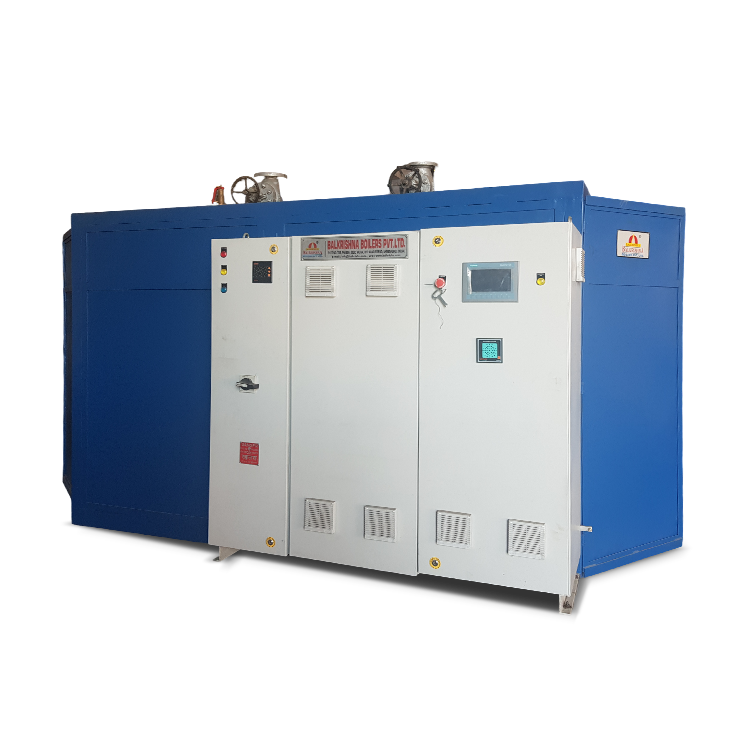

ELECTRO AQUA
Process Heating System

ELECTRO AQUA

  • Environment-friendly and pollution free
  • Quick heat up
  • User friendly and Low maintenance
  • Flame free and no fuel storage required
  • Easy and affordable installation
  • No stack required
  • Zero emission outlet
  • High efficiency up-to 98% even at partial load
Inquire now
ELECTRO AQUA

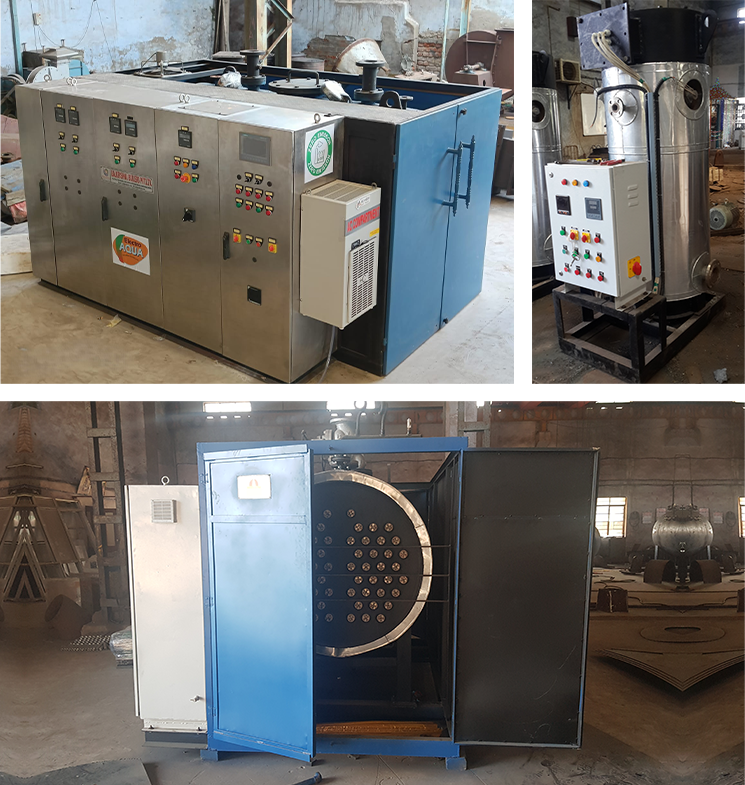

Features

ELECTRO AQUA

The ELECTROAQUA hot water boiler is a shell and tube type horizontal package boiler. The ELECTROAQUA is designed to operate on special type of ceramic bobbin heater. It is high performance and automatic operating through thyristor control system confirms to the most exacting standards of safety, performance and efficiency. This hot water boiler is manufactured with the latest engineering techniques, modern production equipment and with the expertise of highly skilled engineers and workers.

ELECTROAQUA hot water boiler feature a robust design and wide range of regulation. In terms of installation, operation and maintenance alike, they are usually more economical than convectional hot water boilers. As no chimney is needed and the mechanical wear is minimized. The electric hot water boiler is extremely competitive and will improve the CO2 accounts.

Operating Range

  • Capacity – 1 lac Kcal/Hr. to 20 lac Kcal/Hr.
  • Fuel- Electric power
  • Temperature- up to 90℃ and special design up to 160℃

Technical Specifications

Specification Unit EAQ-0.5 EAQ-10 EAQ-20 EAQ-30 EAQ-40 EAQ-50 EAQ-60 EAQ-80 EAQ-100
General
heat Output K Cal/hr KCal/hr 50000 100000 200000 300000 400000 500000 600000 800000 1000000
Maximum Outlet Temperature °C 95 95 95 95 95 95 95 95 95
Allowable ^T °C 30 30 30 30 30 30 30 30 30
Hot Water inlet/ Outlet MM 40 50 65 65 75 75 75 100 100
Heat transfer Area M² 3.14 6.28 12.56 18.84 25.12 25.90 31.40 41.6 51.81
Input Power Volts 415 V- 3Phase 50 Hz
Type of Fuel Fuel Electric Power
Boiler Efficiency
On Electric Heater % 98 +/-2 98 +/-2 98 +/-2 98 +/-2 98 +/-2 98 +/-2 98 +/-2 98 +/-2 98 +/-2
Power Consumption
Electric Power (860 Kcal/KW) KW/Hr 60 120 240 360 480 594 720 954 1188
Electrical Load
Circulation Water Pump H.P. 2.00 3.00 5.00 7.50 10.00 10.00 12.50 15.00 20.00
Input Heater Power H.P. 60 120 240 360 480 594 720 954 1188
Total Electric Load H.P. 62.00 123.00 245.00 367.50 490.00 604.00 732.50 969.00 1208.00
NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice.
