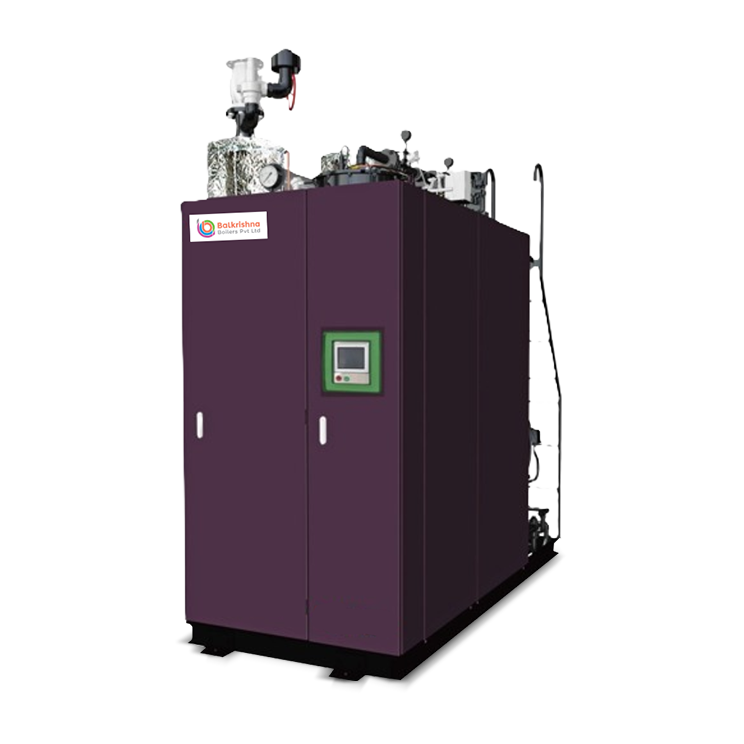

WILLSTEAM
Process Heating System

WILLSTEAM

  • Efficiency up-to 90%
  • Water tube boiler
  • Steam water separation system
  • Unique economizer – optimizer design ensures maximum heat recovery without possibility of feed water pump failure due to boiling/ vapor causing cavitation’s and pump failure
  • Unique circulation burner design prevents leakage and eliminates fire hazard
  • Ceramic wool refractory allows fast cooling of top plate and easy maintenance
Inquire now
WILLSTEAM

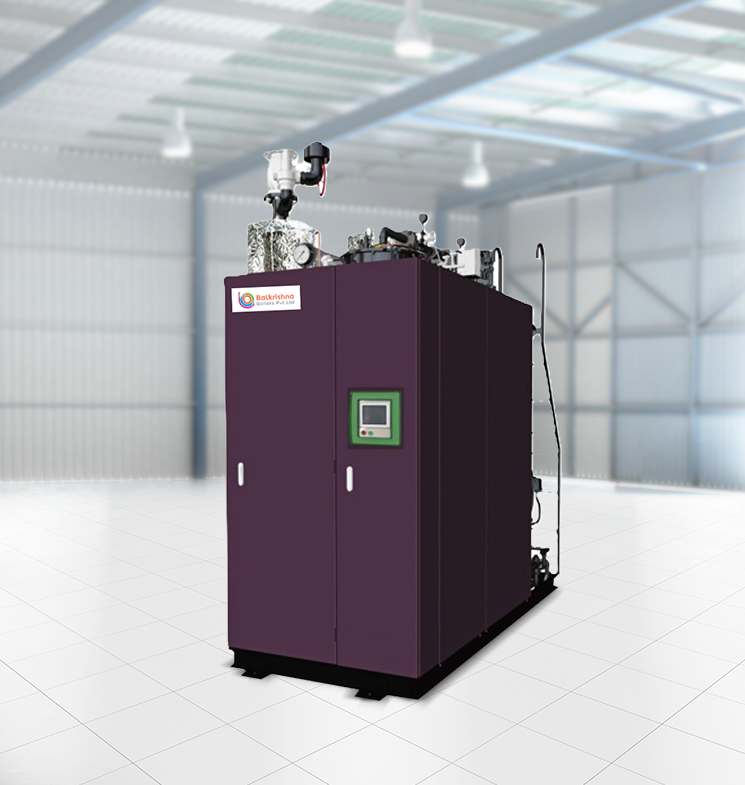

Features

WILLSTEAM

WILLSTEAM is an advance boiler with 90% efficiency rate. This accomplishment is attributable to a newly-designed economizer, which preheats feed water using waste heat, and the adoption of PID (proportional-integral-derivative) control, which controls the boiler’s combustion and water feeding. Steam-Water Separator results in a greater than 99% steam dryness, which indicates a high quality of energy, since the higher the steam dryness, the greater the amount of heat energy. Therefore, achieving a higher steam dryness can significantly improve the production efficiency of industrial facilities using steam.

Operating Range

  • Capacity – 750 KG to 4000 KG
  • Fuel- OIL, GAS, FO
  • Pressure- 10.54 Kg/cm² to 21 Kg/cm²

Technical Specifications

SPECIFICATION unit WS-600 WS-750 WS-1000 WS-1500 WS-2000 WS-2500 WS-3000 WS-4000 WS-5000
General
Steam output from & at 100℃ Kg/hr 600 750 1000 1500 2000 2500 3000 4000 5000
Working pressure MPa 0.98
Heat surface M² 4.9 9.8 18.6 29.4
Nos of passes No’s Three Three Three Three Three Three Three Three Three
No’s of furnace No’s 1 1 1 1 1 1 1 1 1
Combustion control 3 Position PID Continuous
Feed Water Control 2 Position PID Continuous
Feed Water Temperature ℃ 15~100
Type of fuel: Natural gas, LPG
Gas supply pressure Mbar 300
Boiler efficiency % 90
Fuel consumption NGm3N/h 40.40 50.5 67.4 101.1 134.8 168.5 202.2 269.6 337.0
LPGKg/hr 32.7 40.9 54.5 81.7 109.0 136.3 163.4 218.0 272.6
Holding water quantity L 148 275 280 620 990
Dry weight Kg 1460 1560 2400 2500 2700 5000 7800
Power supply AC415V.50Hz.3 phase
Power Capacity
Forced Draft Fan KW 2.2 5.5 7.5 11 15 22
Feed water pump KW 0.75 1.5 2.2 3.0 4.0 5.5
Control panel KW 0.2 0.5
NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice.
  • GCV of LPG is 11000Kcal/KG.
  • GCV of natural gas is 8900 Kcal/KG.
