Biomass Pellet Steam Boiler

  • Automates Pellet Fired Burner System
  • Easy to operate
  • Shell and Tube Configuration
  • User friendly
  • Less Emission in biomass combustion
Inquire now
PELLETAX
Features

Biomass Pellet Steam Boiler

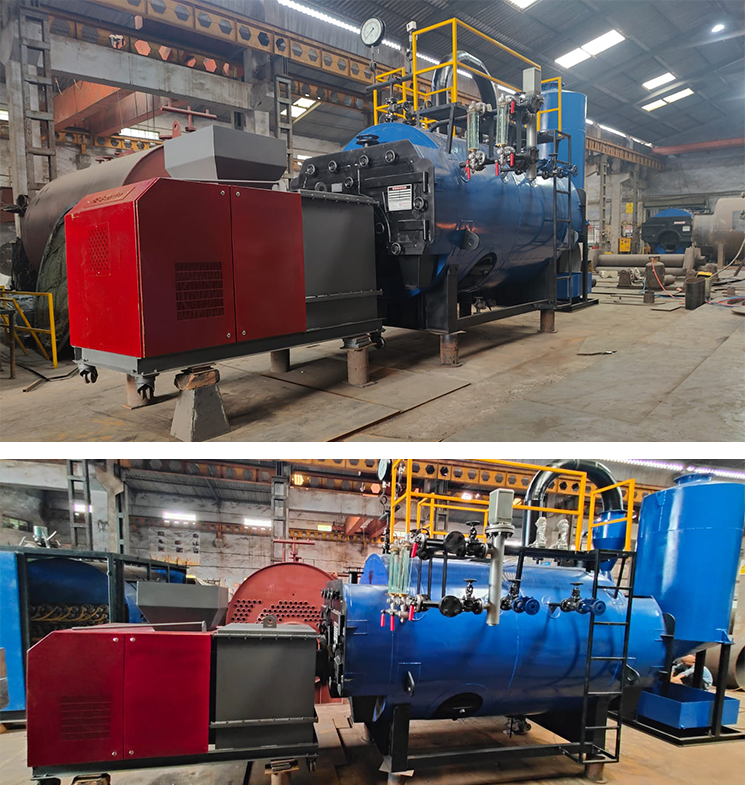

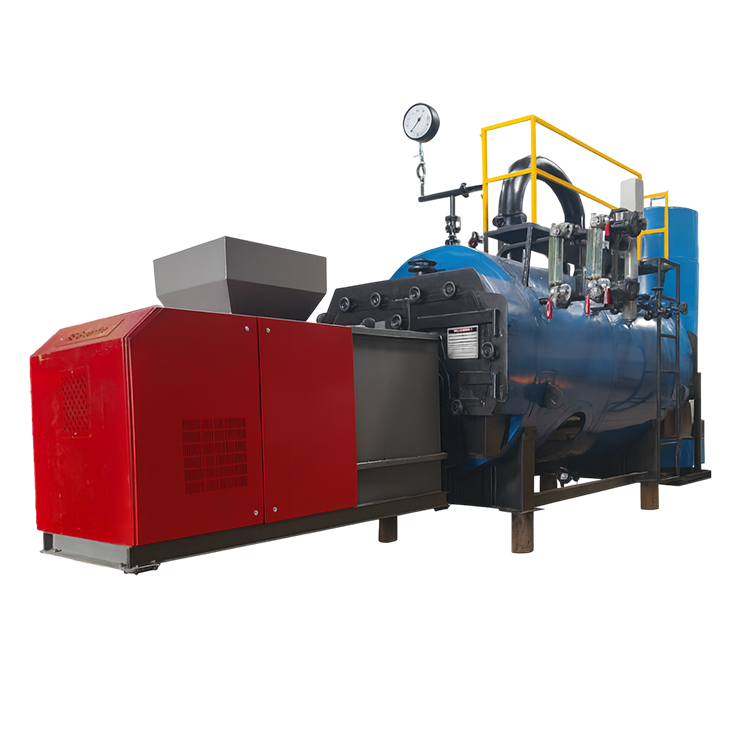

The PELLETAX is a premier, Three-Pass, Fully Wet-Back, Smoke-Tube type package boiler, engineered to provide high-performance steam generation using sustainable biomass pellets. Representing the pinnacle of shell-and-tube design, the PELLETAX combines industrial-grade durability with a sophisticated automated burner system to meet the most exacting standards of safety and efficiency.

Manufactured using the latest engineering techniques and modern production equipment, every PELLETAX unit is a testament to the expertise of our highly skilled engineers and technicians.

Operating Range

  • Capacity –0.5 TPH to 4 TPH
  • Fuel type – Biomass Pellet
  • Pressure- up to 21kg/cm²
Inquire Now

Advanced Design & Automated Performance

The PELLETAX is specifically optimized for Biomass Pellets, offering a clean and renewable alternative to fossil fuels without compromising on power.

  • Three-Pass Fully Wet-Back Design: The "Wet Back" configuration ensures that the combustion gases are surrounded by water at the rear of the boiler. This eliminates the need for heavy refractory rear doors, reducing maintenance costs and preventing heat loss.
  • Automatic Pellet Burner System: Equipped with a precision-engineered automated firing system, the PELLETAX maintains consistent steam pressure with minimal manual intervention.
  • Optimized Heat Transfer: The smoke-tube layout is designed to extract maximum thermal energy from the biomass combustion, resulting in exceptional fuel-to-steam efficiency.
  • Robust Shell Construction: Built to handle high-pressure requirements up to 21 kg/cm², ensuring a long service life even in the most demanding industrial environments.

Key Industry Applications

The PELLETAX is an ideal steam solution for industries looking to transition to carbon-neutral energy:

  • Food & Beverage: For pasteurization, cooking, and large-scale industrial processing.
  • Pharmaceuticals: Providing consistent, high-pressure steam for sterilization and chemical synthesis.
  • Textiles: Used in dyeing, finishing, and garment processing units.
  • Paper & Packaging: For drying and corrugated board manufacturing.
  • Chemical Processing: Supporting various endothermic reactions and heating requirements.

Frequently Asked Questions (FAQ) about Biomass Pellet Steam Boiler

In a Wet-Back boiler, the rear combustion chamber is completely surrounded by water. This prevents the rear tube sheet from overheating and eliminates the need for expensive refractory maintenance, which is common in "Dry Back" boilers. It also significantly increases the heating surface area.

Biomass pellets are a standardized, high-density fuel with low moisture content. They offer more consistent combustion, lower ash content, and are carbon-neutral, helping your facility meet modern environmental regulations while maintaining high efficiency.

Yes. The PELLETAX features an automated pellet feeding and ignition system. The control panel monitors steam demand and adjusts the fuel feed rate accordingly, ensuring stable pressure and reduced labor costs.

Because pellets burn much cleaner than raw wood or coal, soot and ash buildup is significantly reduced. Routine maintenance involves periodic ash removal and tube cleaning, both of which are made simple by the PELLETAX's accessible design.

Absolutely. We have a team of highly qualified and specially trained service personnel available to provide guidance during installation, commissioning, and long-term maintenance to ensure your boiler operates at peak performance.
