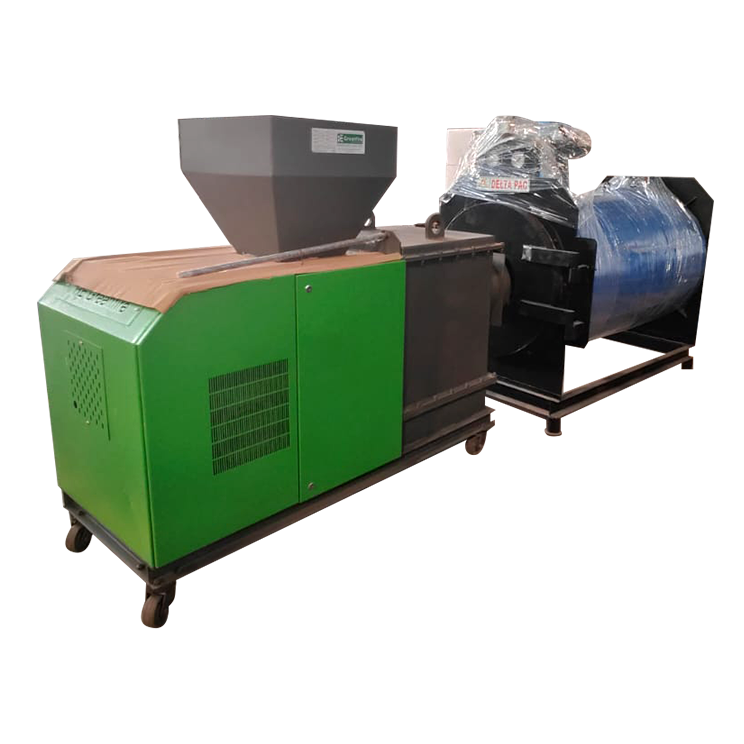

Biomass Pellet Thermic Fluid Heater

  • Especially Designed Pellet fired Thermic fluid heater series considering huge savings in running fuel cost against Oil & Gas fired Thermic heaters.
  • Eco friendly & suitable to pellet combustion.
  • Very low Sox-NOx which completely under limit of pollution control board
  • Minimum guaranteed 30 to 50% savings in fuel cost
Inquire now
PELLEPAC
Features

Biomass Pellet Thermic Fluid Heater

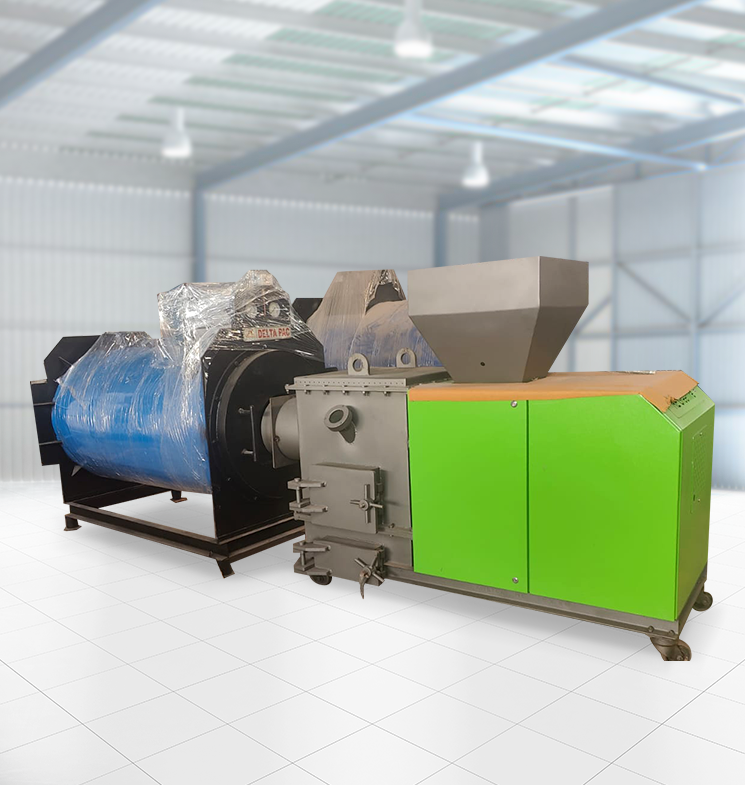

The PELLEPAC-Series is a state-of-the-art, horizontal three-pass thermic fluid heater engineered to leverage the power of sustainable biomass pellets. Designed for industries seeking to reduce fuel costs without compromising on performance, the PELLEPAC allows for high process temperatures at remarkably low operating pressures.

By combining advanced combustion technology with a robust three-pass heat exchanger design, the PELLEPAC offers a carbon-neutral heating solution that is both environmentally responsible and economically superior to traditional oil-fired systems.

Operating Range

  • Capacity – 1, 00,000 Kcal/hr. To 20,00,000 Kcal/hr.
  • Fuel- biomass Pellet
  • Overall efficiency of 85 % (+/-2%) on GCV
Inquire Now

Advanced Engineering & Efficiency

The PELLEPAC features a Three-Pass Wet-Back Design, ensuring maximum residence time for flue gases and optimal heat transfer to the thermal oil.

  • Fully Automatic Operation: Equipped with an automated pellet feeding and combustion system, it minimizes manual intervention and ensures a steady heat output.
  • High Thermal Efficiency: Achieves an overall efficiency of 85% (+/-2%) on Gross Calorific Value (GCV), ensuring you get the maximum energy extract from every kilogram of biomass.
  • Versatile Fuel Compatibility: Specifically designed to burn various types of biomass pellets, providing your facility with fuel flexibility based on local availability.

Key Benefits of the PELLEPAC Series

  • Cost-Effective Heating: Biomass pellets are significantly more affordable than LDO, HSD, or Gas, drastically reducing your operational expenditure.
  • Low Pressure, High Temperature: Safely achieve process temperatures up to 300°C+ while maintaining low system pressure, reducing the risk and cost associated with high-pressure steam systems.
  • Sustainable Operations: Utilizing biomass pellets helps your industry move toward carbon neutrality and meets increasingly strict environmental regulations.
  • Robust Construction: Built with heavy-duty materials to withstand the thermal stresses of biomass combustion, ensuring a long service life and reliable 24/7 operation.

Frequently Asked Questions (FAQ) about Biomass Pellet Thermic Fluid Heater

Switching to biomass pellets can reduce fuel costs by 30% to 50% compared to diesel or LDO-fired heaters. The exact ROI depends on local pellet prices, but most industrial users see a complete payback on the equipment cost within 12 to 18 months.

The PELLEPAC is a fully automatic system. It features a motorized screw feeder and a controlled air-flow system that automatically manages the fuel supply and combustion based on the required oil temperature.

While biomass heaters require slightly more space than electric ones due to the pellet storage and burner assembly, the PELLEPAC’s horizontal horizontal design is optimized for a compact footprint, making it easier to integrate into existing boiler rooms.

Because pellets have low ash content, maintenance is relatively simple. It involves periodic ash removal from the collection chamber and routine inspection of the screw feeder and three-pass tubes to ensure optimal heat transfer.

Yes. The PELLEPAC is designed to reach high process temperatures (up to 300°C) with ease. The primary difference is the fuel source; the thermal performance and temperature stability are comparable to high-end oil-fired thermic fluid heaters.
