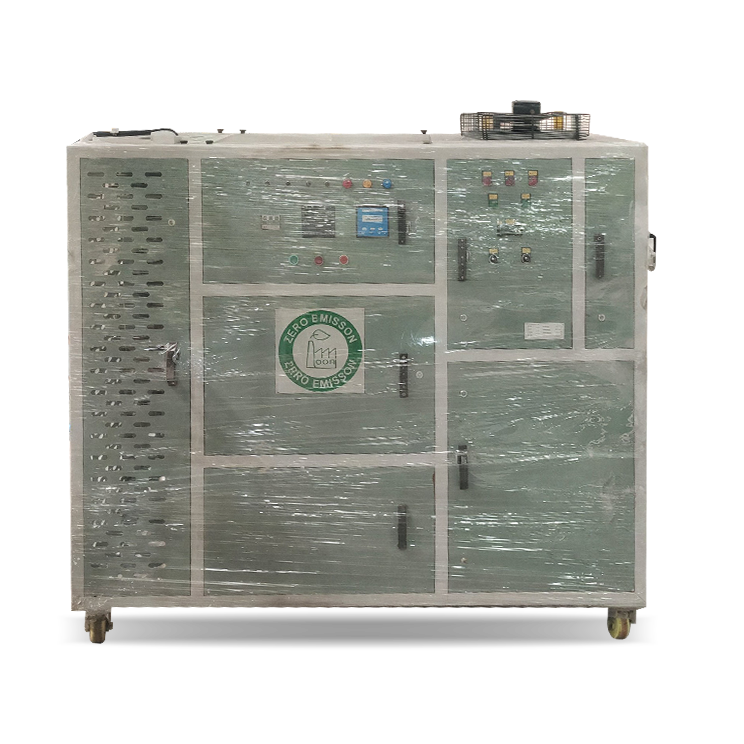

INDUCTRON
Induction Electric Boiler
Balkrishna Boilers proudly introduces the INDUCTRON, a revolutionary breakthrough in industrial steam generation. As a pioneer in induction boiler technology, the INDUCTRON offers a high-efficiency, "Green Steam" solution designed for modern industries that prioritize sustainability, speed, and precision.
Unlike traditional boilers that rely on heating elements, the INDUCTRON uses electromagnetic induction to generate heat directly within the pressure vessel, ensuring near-instantaneous steam production and unmatched thermal performance.
Operating Range
- Capacity –100 Kg/hr. to 1000 Kg/hr***
- Fuel type – Electric Power
- Pressure- up to 10.54 kg/cm2
The Power of Induction Technology
The INDUCTRON leverages the principles of electromagnetism to provide a superior heating experience:
- Instantaneous Start-up: Rapid heat-up times compared to conventional boilers, allowing you to reach operating pressure in minutes.
- Maximum Energy Efficiency: Induction heating minimizes heat loss, converting a higher percentage of electrical energy into usable steam.
- Zero Emissions: A 100% clean-energy solution with no onsite pollution, no chimney requirements, and no fuel storage needs.
- Hygienic Design: Constructed with High-Quality Stainless Steel, the INDUCTRON ensures the highest levels of steam purity and hygiene, making it ideal for sensitive applications.
Key Advantages
- Compact Footprint: The high power density of induction technology allows for a significantly smaller design, saving valuable floor space in your facility.
- Extreme Durability: With no traditional heating elements to burn out or scale up, the INDUCTRON offers a longer service life and lower long-term maintenance costs.
- Precision Control: Integrated with advanced digital monitoring for stable pressure and temperature management.
- Quiet & Safe: Operates with minimal noise and features multiple redundant safety layers for peace of mind.
Ideal for Specialized Industries
Because of its stainless steel construction and rapid response time, the INDUCTRON is the preferred choice for:
- Pharmaceuticals & Healthcare: For sterile steam and cleanroom applications.
- Food & Beverage: Ensuring zero contamination and food-grade hygiene.
- Laboratories: Where precise, on-demand steam is required in a compact space.
| Specification | Unit | IN-30 | IN-60 | IN-120 | IN-180 | IN-240 | IN-300 |
|---|---|---|---|---|---|---|---|
| General | |||||||
| Steam Output From & at 100°C | Kg/hr | 100 | 200 | 400 | 600 | 800 | 1000 |
| Working Pressure | Kg/CM² | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 | 10.54 |
| Steam Temperature | °C | 183 | 183 | 183 | 183 | 183 | 183 |
| Input Power Required | K.W. | 30 | 60 | 120 | 180 | 240 | 300 |
| Steam Outlet | MM | 15 | 20 | 25 | 40 | 40 | 50 |
| Input Power | Volt | 415 V- 3Phase 50 Hz | |||||
| Type of Fuel | Fuel | Electric Power | |||||
| Boiler Efficiency | |||||||
| On Electric Power | % | 220% | 220% | 220% | 220% | 220% | 220% |
| Power Consumption | |||||||
| Electric Power | KW/Hr | 30 | 60 | 120 | 180 | 240 | 300 |
| Electrical Load | |||||||
| Feed Water Pump | H.P. | 0.50 | 0.50 | 1.00 | 2.00 | 3.00 | 3.00 |
| Input Heater Power | H.P. | 40.00 | 80.00 | 160.00 | 240.00 | 320.00 | 400.00 |
| Total Electric Load | H.P. | 40.50 | 80.50 | 161.00 | 242.00 | 323.00 | 403.00 |
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | |||||||
- 1KW = 860 Kcal
- NOTE: At present two models IN-30 and IN-60 are available.
Frequently Asked Questions (FAQ) about Induction Electric Boiler
Standard electric boilers use resistive heating elements (like a geyser), which can scale up and burn out. The INDUCTRON uses electromagnetic fields to heat the vessel itself, which is faster, more energy-efficient, and much more durable.
Absolutely. Because the INDUCTRON is manufactured using high-grade stainless steel, it produces clean, hygienic steam that meets the strict standards required for food processing and medical sterilization.
No. Since it is a 100% electric induction system, there is no combustion and therefore no need for a chimney. Additionally, its automated control system makes it very simple to operate without specialized staff.
One of the primary benefits of induction technology is its speed. While traditional boilers may take a long time to heat up, the INDUCTRON can reach its operating pressure significantly faster, saving you time and energy during daily startups.
Maintenance is minimal compared to fuel-fired or traditional electric boilers. Since there are no heating elements in direct contact with the water to "burn out," you primarily only need to perform routine water softner checks and periodic blowdowns.
