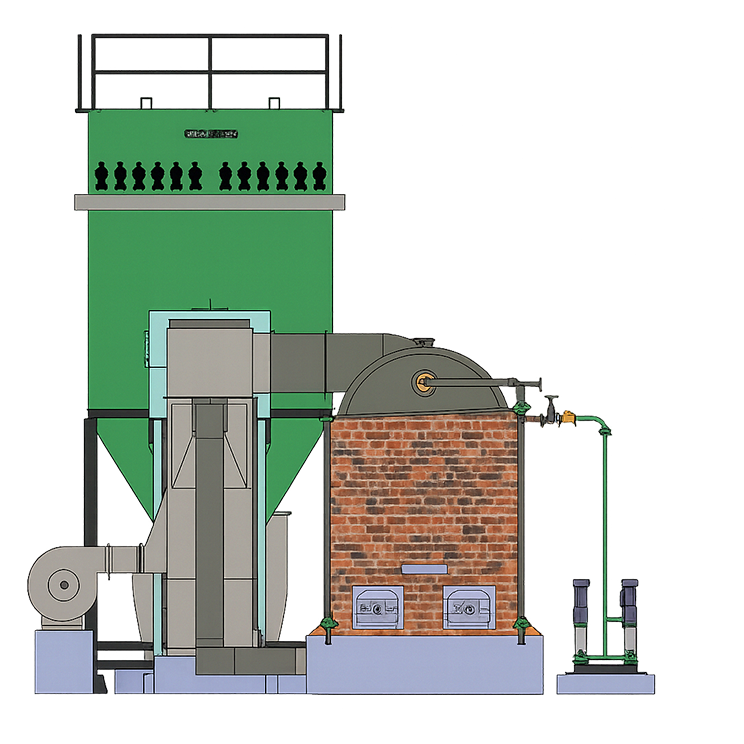

CP-M SERIES
Wood, Biomass & Coal Fired Steam Boiler
The Combipower-M (CP-M) Series is a robust, manually fired steam boiler designed to meet the most exacting standards of safety, performance, and thermal efficiency. Engineered for versatility, the CP-M series features a stationary grate system that allows for the efficient combustion of various solid fuels, including wood logs, coal, and eco-friendly biomass briquettes.
Operating Range
- Capacity – 1 THP to 10 THP
- Fuel- Wood log, Biomass briquette & Coal
- Pressure- 10.54 Kg/cm² to 21 Kg/cm²
Advanced Hybrid Engineering

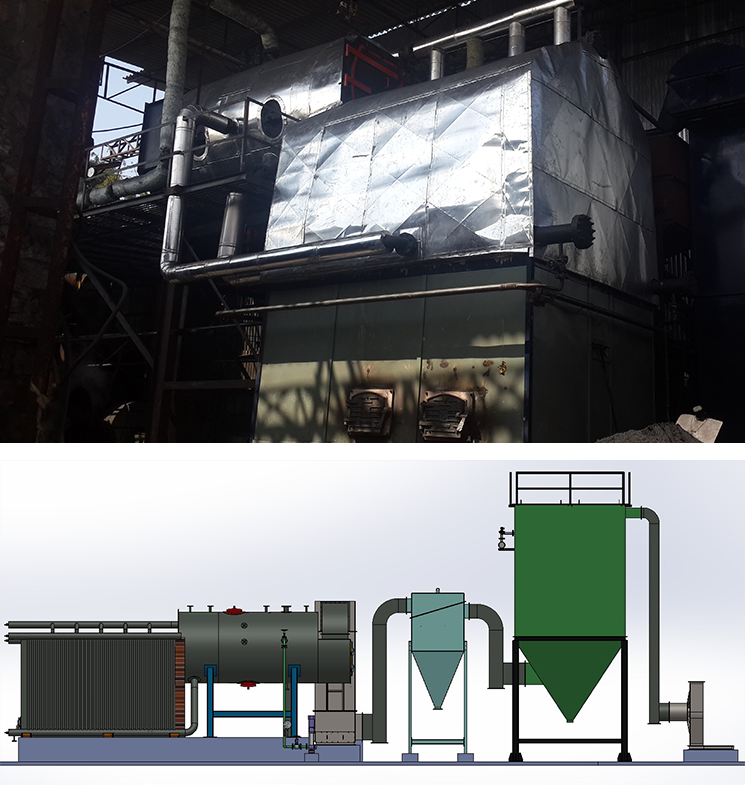

The CP-M Series represents the latest in industrial engineering, combining a water-cooled furnace with a smoke-tube main shell. This hybrid design ensures:
- High Heat Transfer: The water-wall furnace captures maximum radiant heat, while the smoke tubes extract convective heat from the flue gases.
- Large Steam Volume: The generous shell design provides a stable steam reservoir, capable of handling sudden load fluctuations without a drop in pressure.
- Fuel Flexibility: The stationary grate is designed for easy manual firing of bulky fuels like wood logs or high-calorific coal.
Key Features & Benefits
- Robust Construction: Manufactured using modern production equipment and the expertise of highly skilled engineers to ensure a long operational lifespan.
- Cost-Effective Operation: By utilizing locally available solid fuels and biomass, the CP-M series significantly reduces steam generation costs compared to oil or gas-fired units.
- High-Pressure Capability: Capable of operating at pressures up to 21 Kg/cm², making it suitable for demanding industrial processes.
- Low Maintenance: The simplified manual grate system has fewer moving parts, reducing mechanical wear and lowering maintenance overheads.
Targeted Industry Applications
The CP-M Series is a "workhorse" for industries requiring large volumes of steam and looking for low-cost fuel alternatives:
- Textile & Processing: For dyeing, printing, and fabric finishing.
- Chemical & Pharma: For large-scale reactors and distillation columns.
- Plywood & Laminates: For high-pressure hydraulic presses and wood drying.
- Food & Dairy: For pasteurization, evaporation, and large-scale cooking.
- Paper & Packaging: For heating rollers and drying pulp.
Frequently Asked Questions (FAQ) about Wood, Biomass & Coal Fired Steam Boiler
A hybrid boiler combines a water-wall furnace (for better radiant heat absorption) with a smoke-tube shell (for high steam storage). This allows the CP-M to burn solid fuels like coal and wood more efficiently than a simple smoke-tube boiler.
Yes. The stationary grate of the CP-M Series is designed for "multi-fuel" flexibility. You can switch between wood, coal, or biomass briquettes depending on the seasonal availability and cost of the fuel.
While the CP-M is a high-capacity unit (up to 10 TPH), its horizontal package design is optimized to provide the maximum output within a reasonable footprint, making it easier to house in standard boiler rooms.
The CP-M is manufactured to strict IBR (Indian Boiler Regulations) standards. It features multiple safety interlocks, including dual safety valves, low-water level alarms, and high-pressure cut-offs to ensure 24/7 safe operation.
The furnace is designed with large fire-doors and accessible ash pits. This makes manual de-ashing and cleaning a quick and straightforward process for the boiler operator, ensuring the fire remains efficient.
