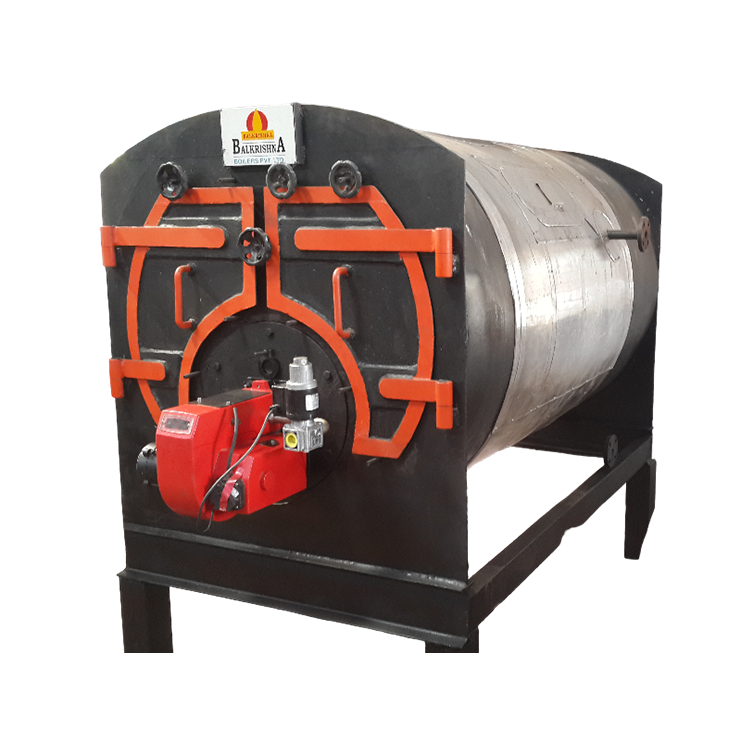

Gas Fired Semi Industrial Boiler
The SIB Series by Balkrishna Boilers is a highly adaptable, two-pass smoke tube steam generator engineered for efficiency and ease of operation. Available in both horizontal and vertical configurations, the SIB is designed to meet the steam requirements of semi-industrial setups where space, fuel versatility, and rapid steam generation are critical.
Whether you require a gas-fired unit for clean operations or a solid-fuel setup for cost-effectiveness, the SIB Series provides a robust, "dry-back" design that ensures maximum heat transfer and durability.
Operating Range
- Capacity – 100 KG/HR to 500 KG/HR
- Fuel- coal/wood/gas/oil/Ele.power.
- Pressure- 7.00 KG/cm²
Advanced Design & Performance
The SIB Series utilizes a Two-Pass Smoke Tube system. In this design, the hot combustion gases travel through the furnace and then return through a bank of smoke tubes. This "dry-back" construction allows for easy access to the tubes for cleaning and inspection, ensuring the boiler maintains peak thermal efficiency throughout its lifespan.

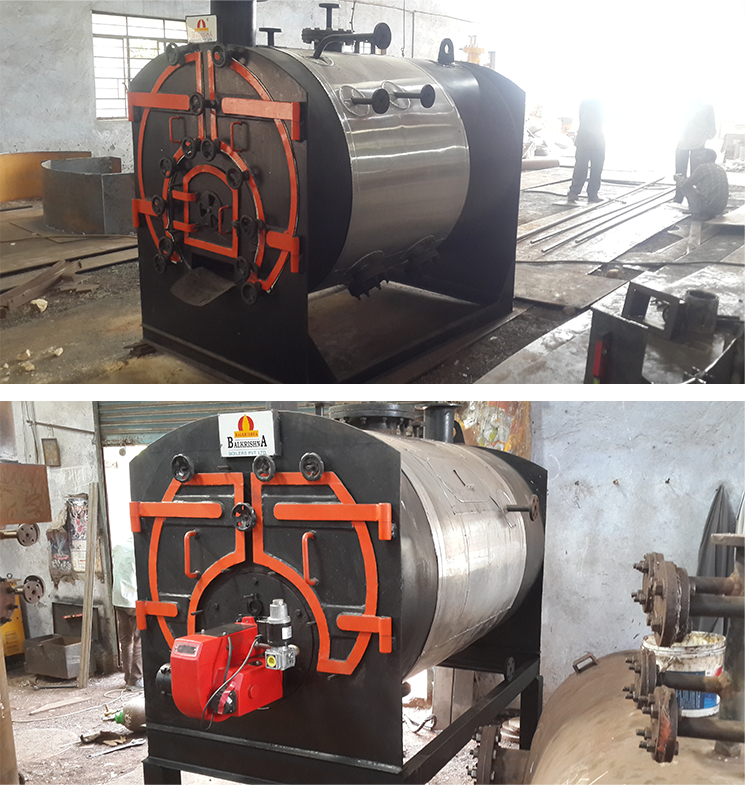

Key Features & Advantages
- Unmatched Fuel Flexibility: One of the most versatile boilers in our range, the SIB can be configured to fire Natural Gas, LPG, Diesel (Oil), Coal, Wood, or even Electric Power.
- Compact & Space-Saving: Designed with a small footprint, the SIB is ideal for facilities where floor space is at a premium or where the boiler must be placed near the point of use.
- Rapid Steam Generation: The optimized water-to-steam ratio allows the SIB to reach operating pressures quickly, reducing wait times during daily startups.
- High-Quality Construction: Built with heavy-duty boiler-grade steel and precision-welded smoke tubes to ensure safe operation at pressures up to 7 kg/cm².
- User-Friendly Operation: Simplified controls and easy-access cleaning doors make the SIB one of the most maintainable boilers in its class.
Industry Applications
The SIB Series is a versatile workhorse for various sectors requiring reliable, small-scale steam:
- Garment & Textile: For steam pressing, ironing, and fabric pleating units.
- Food Processing: Ideal for small dairies, bakeries, and commercial kitchens for cooking and sterilization.
- Pharmaceuticals: For laboratory research, pilot plants, and small-scale autoclave operations.
- Chemicals: Used in small batch reactors and for heating chemical storage tanks.
- Hospitality: Efficient steam source for hotel laundries and health club steam rooms.
| Model | HX-series | VX-series | JX-Series | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specification | Unit | HX-04 | VX-04 | JX-05 | ||||||
| General | ||||||||||
| Steam Output From & at 100°C | Kg/hr | 400 | 400 | 500 | ||||||
| Working Pressure | Kg/CM² | 7.00 | 7.00 | 7.00 | ||||||
| Steam Temperature | °C | 164 | 164 | 164 | ||||||
| No's Passes | No's | 2 | 1 | 2 | ||||||
| No's of Furnace | No's | 1 | 1 | 1 | ||||||
| Steam Outlet | MM | 25 | 25 | 25 | ||||||
| HTA | M² | 15 | 16 | 13 | ||||||
| Type of Fuel | Fuel | Solid | Solid | Oil/Gas | ||||||
| Boilers Efficiency | ||||||||||
| On woodlog & Briquette | % | 70 +/-2 | 70 +/-2 | |||||||
| On Oil and gas | % | 85 +/-2 | ||||||||
| Fuel Consumption | ||||||||||
| WoodLog (3500) | Kg/hr | 88 | 88 | 0 | ||||||
| Briquette (4000) | Kg/hr | 77 | 77 | 0 | ||||||
| N.G.(9600) | M³/Hr | 0 | 0 | 33 | ||||||
| Diesel (10500) | Kg/hr | 0 | 0 | 30 | ||||||
| Electrical Load | ||||||||||
| Feed Water Pump | H.P. | 2.00 | 2.00 | 2.00 | ||||||
| I.D. fan without BF | H.P. | 3.00 | 0.00 | 0.00 | ||||||
| F.D. Fan | H.P. | 0.00 | 0.00 | 2.00 | ||||||
| Total Electric Load | H.P. | 5.00 | 2.00 | 4.00 | ||||||
| NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice. | ||||||||||
- GCV of wood log is 3500 Kcal/KG.
- GCV of briquette is 4000 Kcal/KG.
- GCV of natural gas is 9600 Kcal/KG.
- GCV of diesel is 10500 Kcal/KG.
