COMBIPOWER-CPD
COMBIPOWER-CPD

Solid Fuel Fired Steam Boiler

  • Best suited to burn fine particles with controlled bed temperature
  • Flexibility in operation and rapid responses to load
  • Maximum unburnt losses
  • Ability to handle high ash coal
  • Low excess air required hence higher efficiency
  • Fully automatic operation
  • Uniform heat flux ensuring longer refractory life
  • Specially designed air nozzle for optimum performance
  • Ability to handle high moisture on coal
Inquire now
COMBIPOWER-CPD

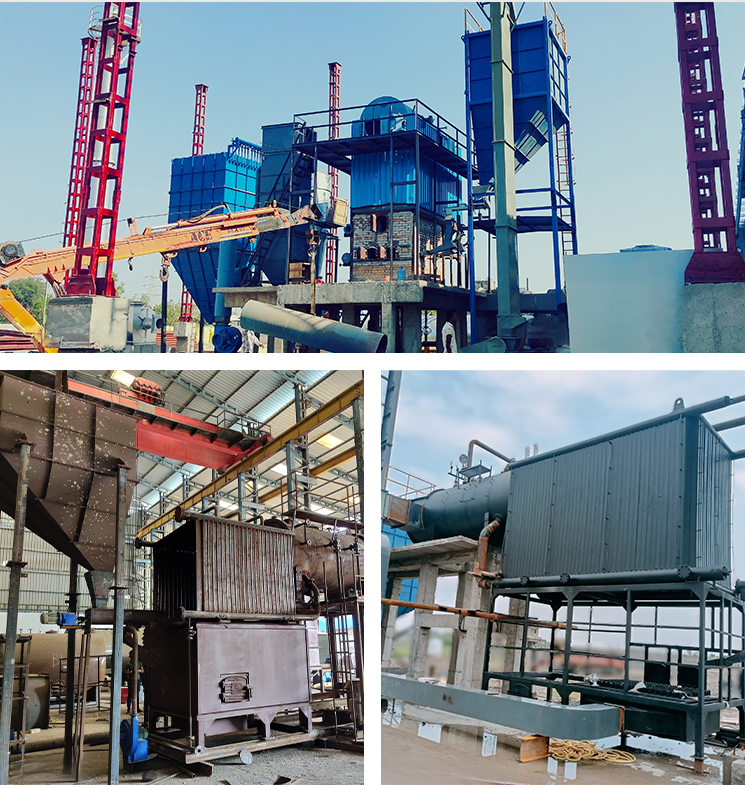

Features

Solid Fuel Fired Steam Boiler

The COMBIPOWER-CPD (CP-F Series) is a high-performance, hybrid-design steam boiler engineered for maximum thermal efficiency and fuel flexibility. By integrating advanced water-tube and smoke-tube technologies, this boiler provides a robust solution for industries requiring large volumes of high-pressure steam while utilizing economical solid fuels.

Manufactured with the latest engineering techniques and modern production equipment, the COMBIPOWER-CPD confirms to the most exacting international standards for safety, performance, and long-term reliability.

Operating Range

  • Capacity – 1 THP to 10 THP
  • Fuel- Wood Chips, Paddy Husk, Biomass Pellets, Biomass briquette & Crushed Coal
  • Pressure- 10.54 Kg/cm² to 21 Kg/cm²
Inquire Now

Engineering Excellence & Hybrid Design

The "Combi" design features a water-cooled combustion chamber combined with a smoke-tube shell. This hybrid configuration offers:

  • High Thermal Efficiency: Maximizes heat absorption from solid fuel combustion.
  • Large Steam Space: Provides a stable steam reserve, making it ideal for processes with sudden load fluctuations.
  • Fuel Versatility: Optimized for a wide variety of solid fuels, allowing you to switch based on seasonal availability and cost.

Key Features & Advantages

The VTMH series is the preferred choice for sectors requiring consistent hot water for processing, cleaning, or space heating:

  • Multi-Fuel Compatibility: Efficiently fires Wood Chips, Paddy Husk, Biomass Pellets, Biomass Briquettes, and Crushed Coal.
  • Automated Operation: Modern styling integrated with advanced control systems ensures precise pressure management and automatic water level maintenance.
  • Robust Construction: Built by highly skilled engineers using premium materials to withstand high-pressure operations up to 21 Kg/cm².
  • Eco-Friendly Combustion: Designed for complete fuel burnout, reducing ash content and minimizing emissions.
  • Easy Maintenance: Large manholes and inspection doors provide easy access to both the water and fire sides for cleaning and maintenance.

Targeted Industry Applications

The COMBIPOWER-CPD is a versatile workhorse for large-scale industrial operations:

  • Rice Mills: Utilizing paddy husk as a zero-cost fuel source for parboiling and drying.
  • Textiles & Processing: Providing consistent high-pressure steam for dyeing, printing, and finishing.
  • Chemical & Pharma: Supporting large reactors and sterilization units requiring stable steam loads.
  • Food & Beverage: For large-scale cooking, pasteurization, and evaporation processes.
  • Paper & Packaging: Supplying the high-capacity steam needed for drying and corrugation.

Technical Specifications

Specification Unit CPD-10 CPD-20 CPD-30 CPD-40 CPD-50 CPD-60 CPD-80
General
Steam Output From & at 100°C Kg/hr 1000 2000 3000 4000 5000 6000 8000
Working Pressure Kg/CM² 10.54 10.54 10.54 10.54 10.54 10.54 10.54
Steam Temprature °C 183 183 183 183 183 183 183
No's Passes No's Four Four Four Four Four Four Four
No's of Furnace No's 1 1 1 1 1 1 1
Steam Outlet MM 50 80 100 100 125 150 150
HTA M² 40 80 120 160 200 240 320
Type of Crushed Fuel: Briquette, Pellet, Rice Husk & Coal
Boilers Efficinecey with APH
On Briquette % 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2
On Pellet % 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2
On Rice Husk % 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2 78 +/-2
On Coal % 80 +/-2 80 +/-2 80 +/-2 80 +/-2 80 +/-2 80 +/-2 80 +/-2
Fuel Consumption
Briquette (4000) Kg/hr 173 346 519 692 865 1038 1385
Pellet (4500) Kg/hr 154 308 462 615 769 923 1231
Rice Husk (3000) Kg/hr 231 462 692 923 1154 1385 1846
Coal (4500) Kg/hr 150 300 450 600 750 900 1200
Electrical Load
Feed Water Pump H.P. 2.00 3.00 4.00 4.00 6.00 7.50 7.50
I.D. fan without BF H.P. 5.00 10.00 15.00 20.00 25.00 30.00 40.00
F.D. Fan H.P. 5.00 10.00 15.00 20.00 25.00 30.00 40.00
S.F.D fan H.P. 1.00 2.00 2.00 2.00 3.00 3.00 4.00
Screw feeder with VFD H.P. 1.00 2.00 2.00 2.00 3.00 3.00 4.00
Total Electric Load H.P. 12.00 23.00 36.00 46.00 59.00 70.50 91.50
NOTE: In view of constant endeavors to improve our products, we reserve the right to alter or change above specifications without prior notice.
  • GCV of briquette is 4000 Kcal/KG.
  • GCV of pellet is 4500 Kcal/KG.
  • GCV of rice husk is 3000 Kcal/KG.
  • GCV of coal is 4500 Kcal/kg.

Frequently Asked Questions (FAQ) about Solid Fuel Fired Steam Boiler

A hybrid boiler combines a water-tube furnace with a smoke-tube shell. This design allows for a larger furnace volume, which is essential for the efficient combustion of bulky solid fuels like wood or husks, while the smoke tubes provide excellent heat transfer to the water.

While it is designed for multi-fuel flexibility, it is best to calibrate the grate and air-flow for the primary fuel being used. However, it can easily transition between different biomass types (like briquettes to pellets) with minor adjustments.

The standard CP-F series is designed for pressures ranging from 10.54 Kg/cm² to 21 Kg/cm², making it suitable for high-pressure industrial applications that require high-temperature saturated steam.

The boiler features a strategically designed grate system (stationary or moving, based on capacity) that allows for easy ash collection and removal, ensuring the furnace remains clean for optimal heat transfer.

Yes. Given the capacity (up to 10 TPH) and pressure (up to 21 Kg/cm²), the COMBIPOWER-CPD is manufactured and certified according to Indian Boiler Regulations (IBR) to ensure maximum safety.
